BBDS1

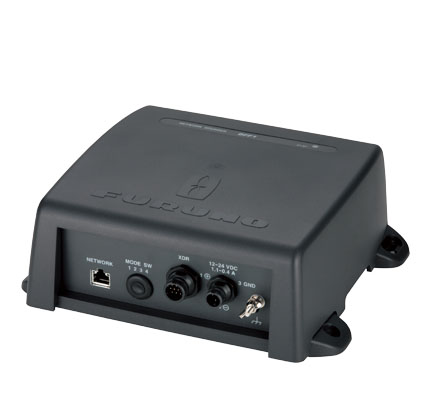

BLACK BOX BOTTOM DISCRIMINATION SOUNDER




BBDS1 revolutionizes finding fish with new bottom discrimination fish finding feature

With this new BBDS1, NavNet 3D/TZtouch/TZtouch2 can show bottom discrimination information from the depth sounder echogram.

Recreational BoatsFishing VesselsWorkboats
NavNet Connect Bottom Discrimination ACCU-FISH™ Auto Tuning (Sensitivity) Black Box Ethernet Plug & Play

Features

  • Indicates a major component of the bottom among mud, sand, gravel, and rock.

  • Works with NavNet series

  • Dual-frequency 50/200 kHz

  • FDF (Furuno Digital Filter) makes the picture clearer and easier to discriminate between baitfish and larger target species

  • FDF technology helps adjust gain and output power as well as suppresses main bang (echoes just below transducer)

  • 8/16/64 color echo presentations

  • 8 range scales up to 1200 m

  • Selectable output power of 600W or 1kW

  • Audio and visual alarms for water depth, fish echoes and water temperature* *Requires appropriate sensors

  • Wide variety of transducer options

  • Selectable automatic cruising or fishing modes to suit your style of boating

  • Automatic function for detecting fish and bottom in both shallow and deep water

  • White line feature helps discriminate fish lying near the bottom

  • Screenshots


  • BOTTOM STANDARD

  • BOTTOM PROBABILITY

  • BD COLOR 1

  • BD COLOR 2

  • BOTTOM STANDARD WITH A SCOPE

  • MENU

Specifications

FISH FINDER

Frequency
50/200 kHz
Transducer
600 W or 1 kW (Optional Matching Box, MB-1100 may be required)
Range Scale
Max. 1,200 m

OTHERS

Waterproofing
IPX0
Power Supply
12-24 VDC, 30 W, 3.5 A
Size
219 (H) x 255 (W) x 90 (D)
Weight
1.2 kg

Interconnection Diagram

Equipment List

Standard

  • BOTTOM DISCRIMINATION SOUNDER BBDS1-E1 UNIT
  • POWER CABLE 3.5 M1 PC
  • NETWORK CABLE 5 M1 PC
  • INSTALLATION MATERIALS AND SPARE PARTS1 SET

Option

  • CABLE ASSY (FOR ST SENSOR)
  • 1 KW
    DUAL FREQUENCY TRANSDUCER
    50/200-1T (RUBBER)
  • 600 KW (8 M)
    TRANSDUCER
    520-5MSD
    520-5PSD
    525-5PWD
    525STID-MSD (USA)
    525STID-PWD (USA)
  • MATCHING BOXMB-1100
  • NETWORK CABLE ASSY2M/10M
  • RECTIFIER (CHINA)PR-62
    (100 VAC/220 VAC)
  • SPEED/TEMPERATURE SENSORST-02MSB (USA)
    ST-02PSB (USA)
  • TEMPERATURE SENSORT-02MSB
    T-02MTB
    T-03MSB
